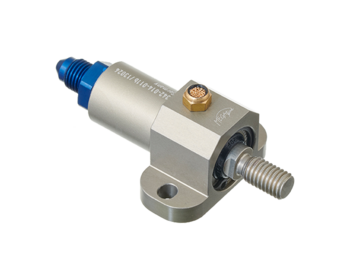

The blip cylinder is operated with a pressure of between 6-8 bar. The compressed air is supplied via a Dash 3 hose. The pressure supply is controlled via the connected valve block (passive blip cylinder). Despite its extremely small and lightweight construction the unit produces 120N at 6 bar pressure. The piston stroke is 9.5 mm without return spring. A filter protects the ventilation hole from contamination.
The simple and user-friendly assembly and adjustment is ensured by the two slotted holes on the housing
