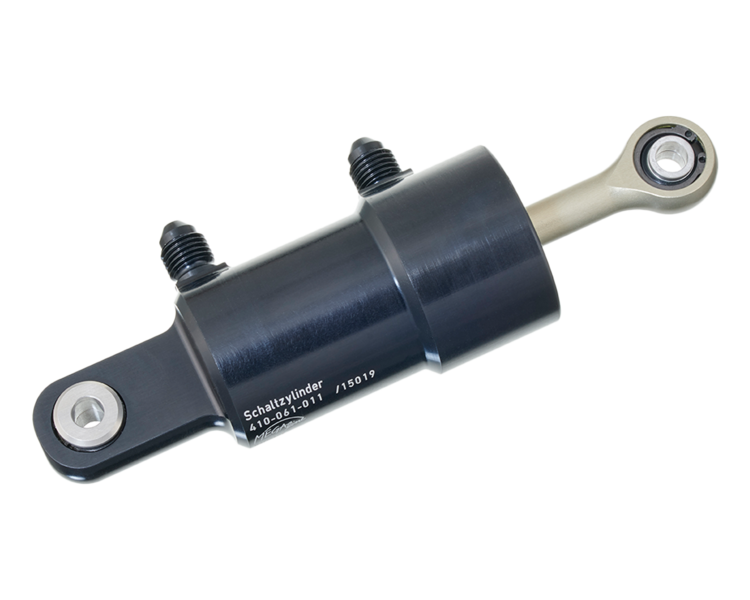

Shift cylinder 35 mm piston

The ‘shift cylinder 35 mm piston’ is a pneumatically operated two-way actuator, which moves the shift lever on the gearbox in both directions (push/pull)

The shift cylinder is operated with a nominal pressure of between 6-8 bar. The compressed air is supplied via a Dash 4 hose.

A shift force of up to 600 N is available. Thanks to its excellent durability and constant performance, the shift cylinder is also especially suited for applications in endurance racing.

Piston diameter: 35mm
Stroke: +/- 12mm nominal displacement
Installation length: 176mm

Optimum performance is guaranteed when used in combination with a MEGA-Line AGS central unit and a MEGA-Line valve block.

  • Type No.
  • Order No.
  • Designation
  • Type No. 410-061-011
  • Order No. 7328
  • Designation Shift cylinder 35 mm piston
  • product data sheet
